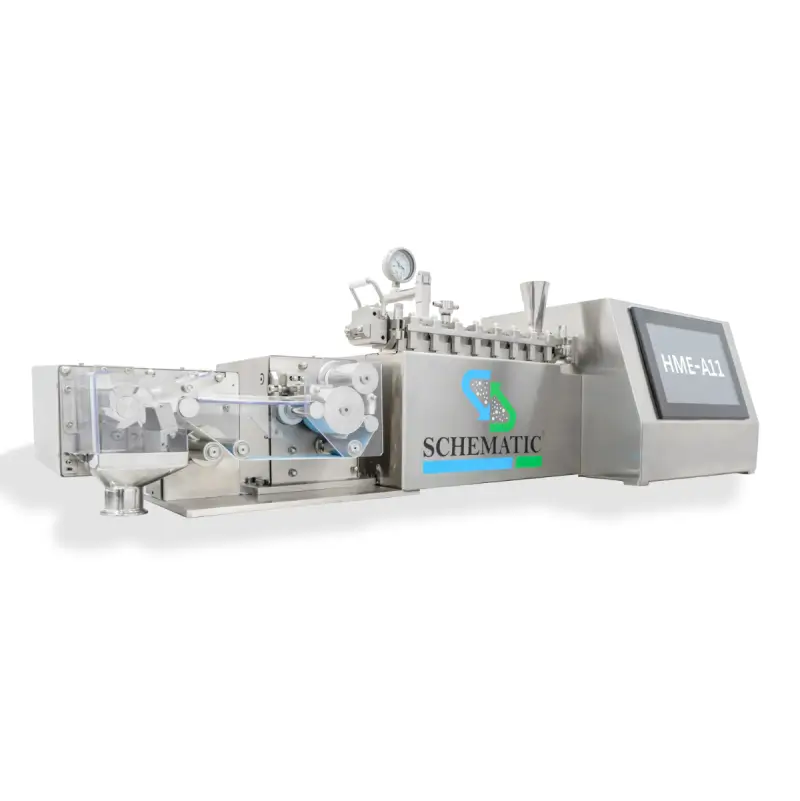

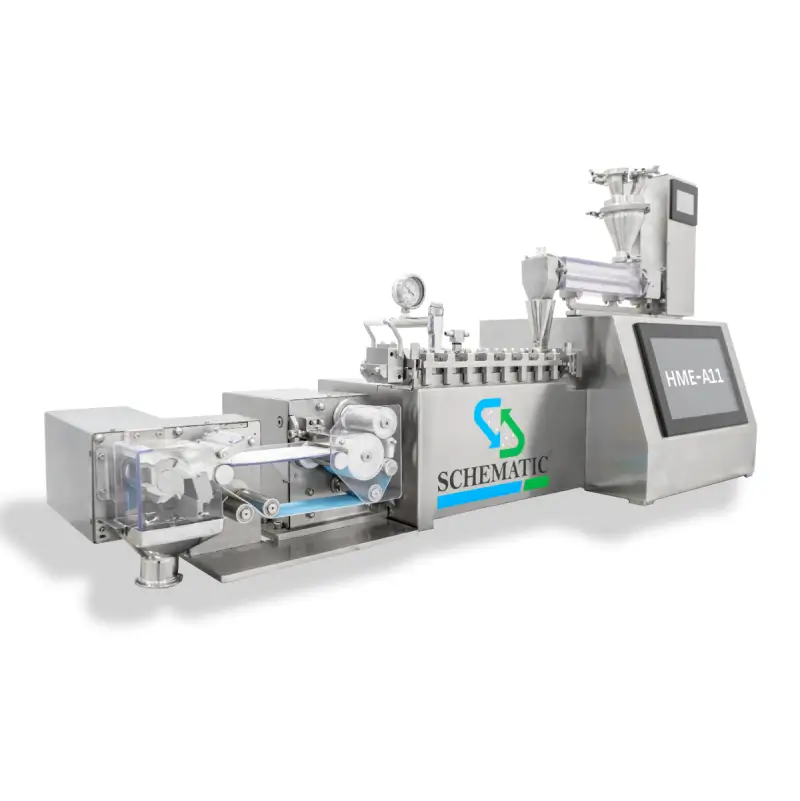

The Schenergix HME A11 is a compact hot melt extruder designed specifically for research and development. It provides scientists with the precision and flexibility needed to test new formulations and refine processes before moving into pilot or commercial-scale production. Hot Melt Extrusion is a powerful technology for improving solubility, bioavailability, and controlled drug release, and the A11 also supports both wet and dry granulation using HME, making it a reliable entry point for exploring the full potential of this technology.

With small batch capability and a throughput of up to 2 kg/h, the A11 is ideally suited to early-stage experimentation. It supports a wide range of applications including solubility enhancement, taste masking, and transdermal delivery. Easy to operate, self-cleaning, and adaptable, the A11 is the perfect tool for R&D teams developing innovative pharmaceutical solutions.

Key Features include:

  • R&D-scale throughput up to 2 kg/h
  • Supports wet and dry granulation using HME
  • Convertible barrel length L/D 40:1
  • Minimum batch size of 50 g
  • Easy to operate, self-cleaning, and compliant with 21 CFR-Part 11
Enquire Now

Design Features

  • Barrel length (convertible): L/D 40:1
  • Diameter ratio (Do/Di): 1.68
  • Throughput (formulation dependent): up to 2.0 kg/h
  • Minimum batch size: 50 g
  • Heating zones: 7
  • Electrical: 400V / 3ph+N / 40A
  • Cooling water: 10 L/min (8–18°C)
  • Technical Specification

  • Barrel bore diameter: 11 mm
  • Maximum motor power: 1.5 kW
  • Maximum screw speed: 1100 rpm
  • Nominal torque: 10 Nm
  • Dimensions (LxWxH): 1.9 x 0.5 x 0.9 m
  • Operational Benefit

  • Modular screw design
  • Quick conversion between L/D 20 or 40
  • Skid-mounted chill-roll and pelletiser
  • Side feeding and ability to inject solids, liquids, and gases
  • Easy, self-cleaning operation
  • Available with flexible or rigid isolator up to OEL-5
  • 21 CFR-Part 11 compliant
  • Applications

  • API synthesis
  • Research and development
  • Solubility enhancement
  • Modified release
  • Taste masking
  • Fast dissolving films
  • Transdermal patches
  • Melt granulation
  • Wet granulation
  • Dry granulation
  • Biomedical compounding
  • Supply Options
